Service data

Service Data

Sensor

Manifold Absolute Pressure Sensor (MAPS)

Pressure			Output Voltage (V)
kPa	kgf/cm²	psi	Output Voltage (V)
20	0.2	2.9	0.79
46.7	0.47	6.77	1.84
106.7	1.03	14.7	4.2

Intake Air Temperature Sensor (IATS)

Temperature [()]		Resistance (kΩ)
°C	°F	Resistance (kΩ)
-40	-40	40.93 - 48.35
-20	-4	13.89 - 16.03
0	32	5.38 - 6.09
10	50	3.48 - 3.90
20	68	2.31 - 2.57
40	104	1.08 - 1.21
50	122	0.76 - 0.85
60	140	0.54 - 0.62
80	176	0.29 - 0.34

Engine Coolant Temperature Sensor (ECTS)

Temperature		Resistance (kΩ)
°C	°F	Resistance (kΩ)
45	113	244.8 - 281.4
55	131	162.5 - 186.5
60	140	133.5 - 153.5
71	159.8	88.93 - 102.13
85	185	55.16 - 63.36
110	230	26.02 - 29.82
125	257	17.5 - 19.7

Throttle Position Sensor (TPS) [ integrated into ETC module]

Throttle angle (°)	Output voltage (V) [Vref = 5.0V]
Throttle angle (°)	TPS1	TPS2
0	0.5	4.5
10	0.96	4.05
20	1.41	3.59
30	1.87	3.14
40	2.32	2.68
50	2.78	2.23
60	3.23	1.77
70	3.69	1.32
80	4.14	0.86
90	4.6	0.41
98	4.65	0.35
C.T (0)	0.5	4.5
W.O.T (86)	4.41	0.59

Accelerator Position Sensor (APS)

Accelerator Position	Output Voltage (V) [Vref = 5.0V]
Accelerator Position	APS1	APS2
C.T	0.7 - 0.8	0.33 - 0.43
W.O.T	3.98 - 4.22	1.93 - 2.17

Knock Sensor (KS)

Item	Specification
Capacitance (pF)	850 - 1,150

Actuator

Injector

Item	Specification
Coil Resistance (Ω)	14.5 [20°C(68°F)]

ETC Motor [integrated into ETC Module]

Item	Specification
Coil Resistance (Ω)	0.3 - 100 [20°C(68°F)]

CVVT Oil Control Valve (OCV)

Item	Specification
Coil Resistance (Ω)	9.4 - 10.4 [20°C(68°F)]

Variable Intake Solenoid (VIS) Valve

Item	Specification
Coil resistance (Ω)	30.0 - 35.0 [22°C (71.6°F)]

Fuel Delivery System

Items	Specification
Fuel Tank	Capacity	60 L (15.8 U.S.gal., 63.4 U.S.qt., 52.8 lmp.qt.)
Fuel Filter	Type	Paper type
Fuel Pressure Regulator	Regulated Fuel Pressure	330 - 370 kPa (3.3 - 3.7 bar, 3.365 - 3.772 kgf / cm²)
Fuel Pump	Type	Electrical, in-tank type
Fuel Pump	Driven by	Electric motor

Tightening torque

Tightening Torque

Engine Control System

Item	N·m	kgf·m	lb·ft
ECM & bracket mounting bolts	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Electronic throttle body mounting bolts	7.8 - 11.8	0.8 - 1.2	5.8 - 8.7
Manifold absolute pressure sensor installation bolt	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Engine coolant temperature sensor	29.4 - 39.2	3.0 - 4.0	21.7 - 28.9
Crankshaft position sensor mounting bolt	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Camshaft position sensor mounting bolt	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Knock sensor mounting bolt	18.6 - 23.5	1.9 - 2.4	13.7 - 17.4
Heated oxygen sensor	39.2 - 49.1	4.0 - 5.0	28.9 - 36.2
Accelerator pedal module mounting nuts	6.9 - 10.7	0.7 - 1.1	5.0 - 7.9
CVVT oil control valve mounting bolt	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Variable intake solenoid valve mounting bolts	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Variable charge motion actuator mounting bolts	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7

Fuel Delivery System

Item	N·m	kgf·m	lb·ft	lb·ft
Fuel tank band mounting bolt	39.2 - 54.0	4.0 - 5.5	28.9 - 39.8	-
Filler hose clmap	4.9 - 5.9	0.5 - 0.6	3.6 - 4.3	43.40 - 52.08
Filler-neck assembly bracket installation bolt	8.8 - 9.8	0.9 - 1.0	6.5 - 7.2	-
Delivery pipe mounting bolt	18.6 - 23.5	1.9 - 2.4	13.7 - 17.4	-

Special service tools

Special Service Tools

Tool Name / Number	Illustration	Description
Fuel Pressure Gauge 09353-24100		Used for measuring the pressure in fuel line
Fuel Pressure Gauge Adapter 09353-02100		Used for connecting between the delivery pipe and the fuel feed line
Heated Oxygen Sensor Socket Wrench 09392-1Y100		Used for removing / installaing the heated oxygen sensor ※ SST No.09392-2H100 model also can be used for removing the Heated Oxygen Sensor.
Fuel Pump Plate Cover Wrench 09310-B8100		Removing and installing fuel pump plate cover

Troubleshooting

Basic Troubleshooting

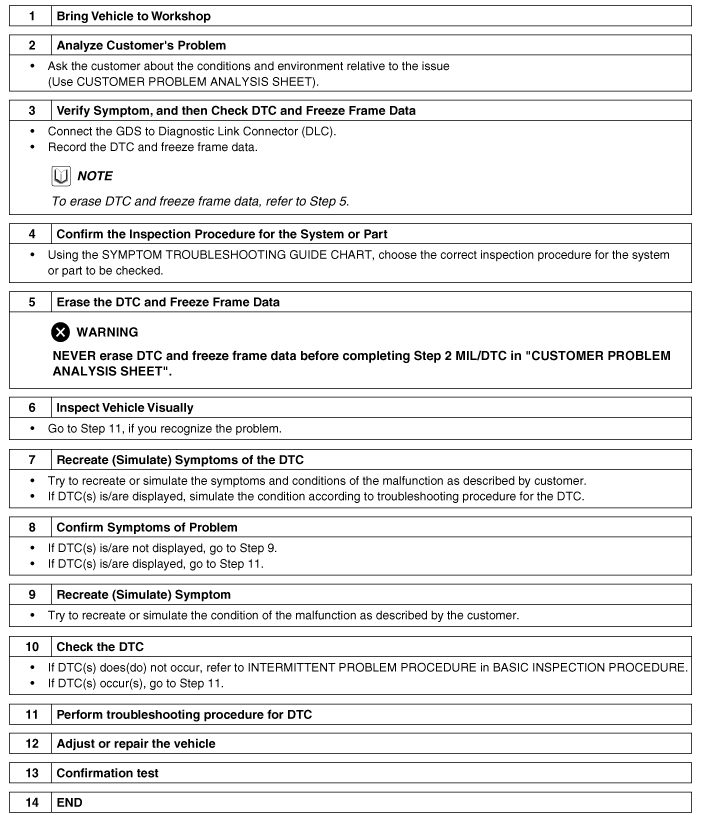

Basic Troubleshooting Guide

Basic Inspection Procedure

Measuring Condition of Electronic Parts' Resistance

The measured resistance at high temperature after vehicle running may be high or low. So all resistance must be measured at ambient temperature (20°C, 68°F), unless stated otherwise.

The measured resistance in except for ambient temperature (20°C, 68°F) is reference value.

Intermittent Problem Inspection Procedure

Sometimes the most difficult case in troubleshooting is when a problem symptom occurs but does not occur again during testing. An example would be if a problem appears only when the vehicle is cold but has not appeared when warm. In this case, the technician should thoroughly make out a "Customer Problem Analysis Sheet" and recreate (simulate) the environment and condition which occurred when the vehicle was having the issue.

1.	Clear Diagnostic Trouble Code (DTC).

2.	Inspect connector connection, and check terminal for poor connections, loose wires, bent, broken or corroded pins, and then verify that the connectors are always securely fastened.

3.	Slightly shake the connector and wiring harness vertically and horizontally.

4.	Repair or replace the component that has a problem.

5.	Verify that the problem has disappeared with the road test.

● Simulating Vibration

Sensors and Actuators

: Slightly vibrate sensors, actuators or relays with finger.

Strong vibration may break sensors, actuators or relays

b.	Connectors and Harness : Lightly shake the connector and wiring harness vertically and then horizontally.

● Simulating Heat

Heat components suspected of causing the malfunction with a hair dryer or other heat source.

•	DO NOT heat components to the point where they may be damaged.

•	DO NOT heat the ECM directly.

● Simulating Water Sprinkling

Sprinkle water onto vehicle to simulate a rainy day or a high humidity condition.

DO NOT sprinkle water directly into the engine compartment or electronic components.

● Simulating Electrical Load

a.	Turn on all electrical systems to simulate excessive electrical loads (Radios, fans, lights, rear window defogger, etc.).

Connector Inspection Procedure

Handling of Connector

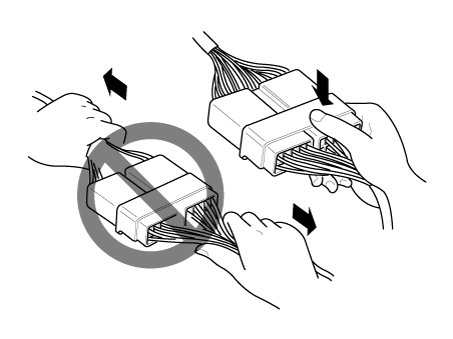

a.	Never pull on the wiring harness when disconnecting connectors.

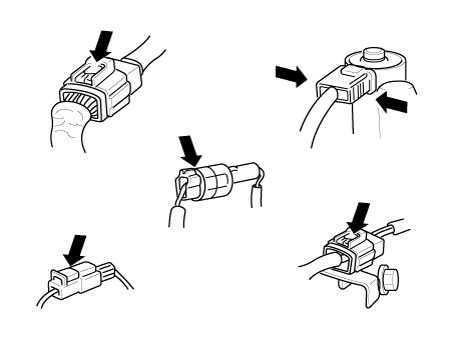

b.	When removing the connector with a lock, press or pull locking lever.

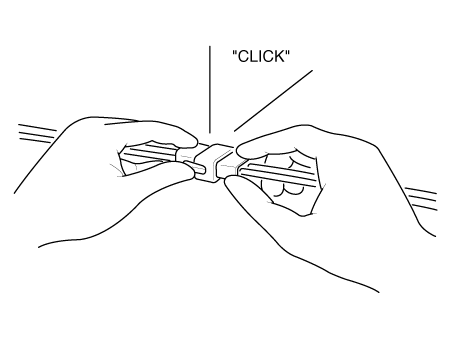

c.	Listen for a click when locking connectors. This sound indicates that they are securely locked.

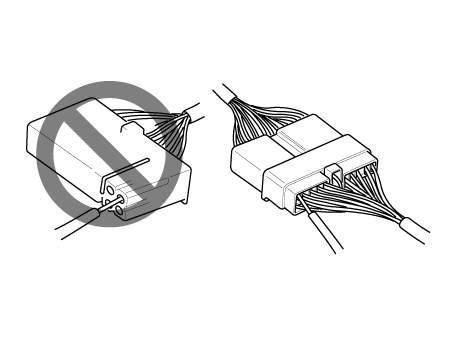

d.	When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

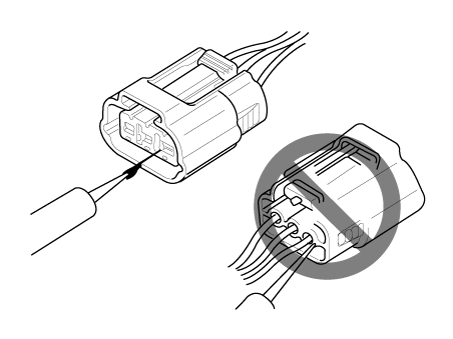

Check waterproof connector terminals from the connector side. Waterproof connectors cannot be accessed from harness side.

•	Use a fine wire to prevent damage to the terminal.

•	Do not damage the terminal when inserting the tester lead.

Checking Point for Connector

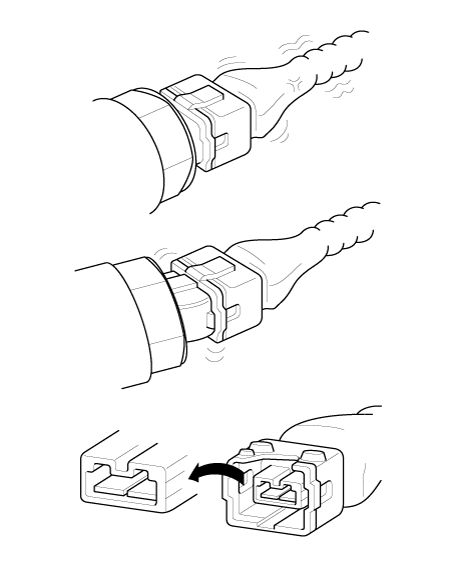

a.	While the connector is connected: Hold the connector, check connecting condition and locking efficiency.

b.	When the connector is disconnected: Check missed terminal, crimped terminal or broken core wire by slightly pulling the wire harness. Visually check for rust, contamination, deformation and bend.

c.	Check terminal tightening condition: Insert a spare male terminal into a female terminal, and then check terminal tightening conditions.

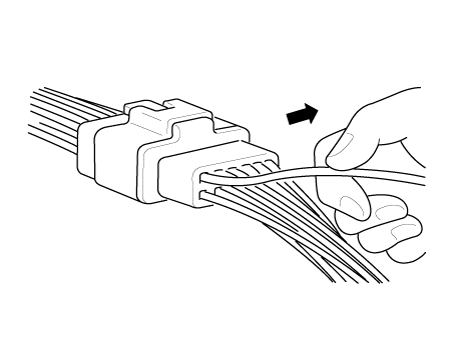

d.	Pull lightly on individual wires to ensure that each wire is secured in the terminal.

Repair Method of Connector Terminal

Clean the contact points using air gun and/or shop rag.

Never use sand paper when polishing the contact points, otherwise the contact point may be damaged.

b.	In case of abnormal contact pressure, replace the female terminal.

Wire Harness Inspection Procedure

1.	Before removing the wire harness, check the wire harness position and crimping in order to restore it correctly.

2.	Check whether the wire harness is twisted, pulled or loosened.

3.	Check whether the temperature of the wire harness is abnormally high.

4.	Check whether the wire harness is rotating, moving or vibrating against the sharp edge of a part.

5.	Check the connection between the wire harness and any installed part.

6.	If the covering of wire harness is damaged; secure, repair or replace the harness.

Electrical Circuit Inspection Procedure

● Check Open Circuit

Procedures for Open Circuit

•	Continuity Check

•	Voltage Check

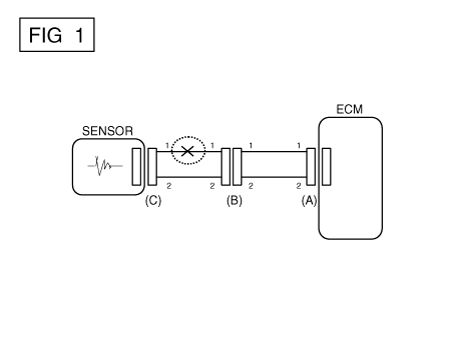

If an open circuit occurs (as seen in [FIG. 1]), it can be found by performing Step 2 (Continuity Check Method) or Step 3 (Voltage Check Method) as shown below.

Continuity Check Method

When measuring for resistance, lightly shake the wire harness above and below or from side to side.

Specification (Resistance)

1Ω or less → Normal Circuit

1MΩ or Higher → Open Circuit

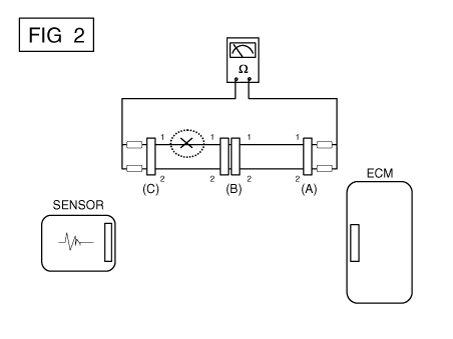

Disconnect connectors (A), (C) and measure resistance between connector (A) and (C) as shown in [FIG. 2].

In [FIG.2.] the measured resistance of line 1 and 2 is higher than 1MΩ and below 1 Ω respectively. Specifically the open circuit is line 1 (Line 2 is normal). To find exact break point, check sub line of line 1 as described in next step.

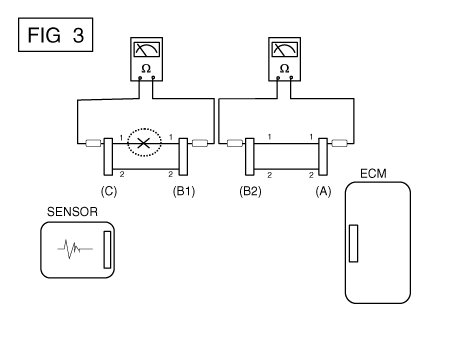

Disconnect connector (B), and measure for resistance between connector (C) and (B1) and between (B2) and (A) as shown in [FIG. 3].

In this case the measured resistance between connector (C) and (B1) is higher than 1MΩ and the open circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

Voltage Check Method

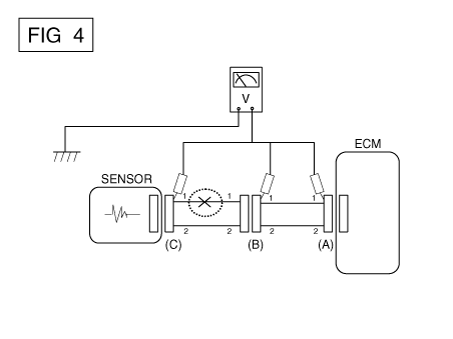

a.	With each connector still connected, measure the voltage between the chassis ground and terminal 1 of each connectors (A), (B) and (C) as shown in [FIG. 4]. The measured voltage of each connector is 5V, 5V and 0V respectively. So the open circuit is between connector (C) and (B).

● Check Short Circuit

Test Method for Short to Ground Circuit

•	Continuity Check with Chassis Ground

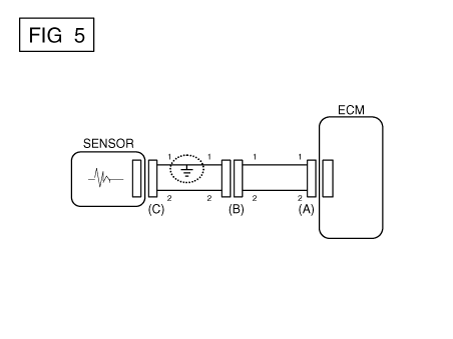

If short to ground circuit occurs as shown in [FIG. 5], the broken point can be found by performing Step 2 (Continuity Check Method with Chassis Ground) as shown below.

Continuity Check Method (with Chassis Ground)

Lightly shake the wire harness above and below, or from side to side when measuring the resistance.

Specification (Resistance)

1Ω or less → Short to Ground Circuit

1MΩ or Higher → Normal Circuit

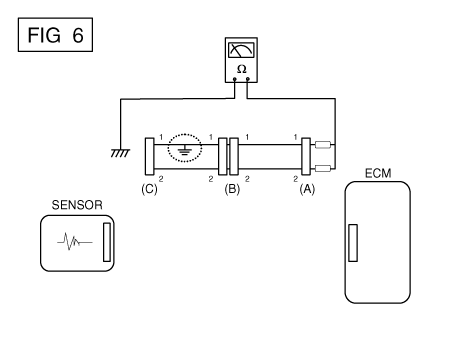

Disconnect connectors (A), (C) and measure for resistance between connector (A) and Chassis Ground as shown in [FIG. 6].

The measured resistance of line 1 and 2 in this example is below 1 Ω and higher than 1MΩ respectively. Specifically the short to ground circuit is line 1 (Line 2 is normal). To find exact broken point, check the sub line of line 1 as described in the following step.

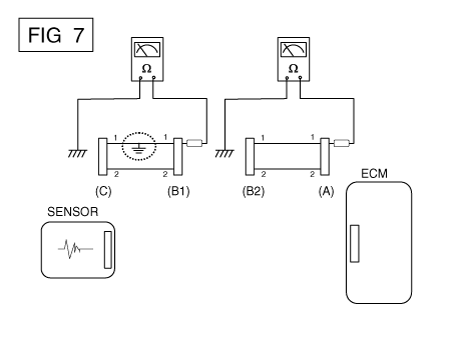

Disconnect connector (B), and measure the resistance between connector (A) and chassis ground, and between (B1) and chassis ground as shown in [FIG. 7].

The measured resistance between connector (B1) and chassis ground is 1Ω or less. The short to ground circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

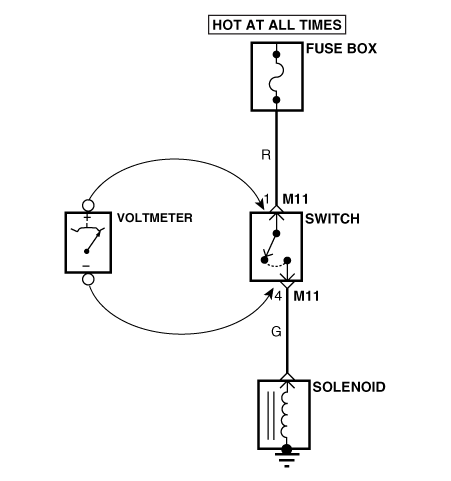

● Testing For Voltage Drop

This test checks for voltage drop along a wire, or through a connection orswitch.

A.	Connect the positive lead of a voltmeter to the end of the wire (or to the side of the connector or switch) closest to the battery.

B.	Connect the negative lead to the other end of the wire. (or the other side of the connector or switch)

C.	Operate the circuit.

D.	The voltmeter will show the difference in voltage between the two points. A difference, or drop of more than 0.1 volts (50mV in 5V circuits), may indicate a problem. Check the circuit for loose or dirty connections.

Symptom Troubleshooting Guide Chart

Main symptom

Diagnostic procedure

Also check for

Unable to start
(Engine does not turn over)

1)	Test the battery.

2)	Test the starter.

3)	Inhibitor switch (A/T) or clutch start switch (M/T)

Unable to start
(Incomplete combustion)

1)	Test the battery.

2)	Check the fuel pressure

3)	Check the ignition circuit.

4)	Troubleshooting the immobilizer system. (In case of immobilizer lamp flashing)

•

DTC

•	Low compression

•	Intake air leaks

•	Slipped or broken timing belt

•	Contaminated fuel

Difficult to start

1)	Test the battery.

2)	Check the fuel pressure

3)	Check the ECT sensor and circuit (Check DTC)

4)	Check the ignition circuit.

•

DTC

•	Low compression

•	Intake air leaks

•	Contaminated fuel

•	Weak ignition spark

Poor idling
(Rough, unstable or incorrect Idle)

1)	Check the fuel pressure.

2)	Check the Injector.

3)	Check the long term fuel trim and short term fuel trim (Refer to CUSTOMER DATASTREAM)

4)	Check the idle speed control circuit (Check DTC)

5)	Inspect and test the Throttle Body

6)	Check the ECT sensor and circuit (Check DTC)

•

DTC

•	Low compression

•	Intake air leaks

•	Contaminated fuel

•	Weak ignition spark

Engine stall

1)	Test the battery.

2)	Check the fuel pressure.

3)	Check the idle speed control circuit (Check DTC)

4)	Check the ignition circuit.

5)	Check the CKPS Circuit (Check DTC)

•

DTC

•	Intake air leaks

•	Contaminated fuel

•	Weak ignition spark

Poor driving
(Surge)

1)	Check the fuel pressure.

2)	Inspect and test Throttle Body

3)	Check the ignition circuit.

4)	Check the ECT Sensor and Circuit (Check DTC)

5)	Test the exhaust system for a possible restriction.

6)	Check the long term fuel trim and short term fuel trim (Refer to CUSTOMER DATASTREAM)

•

DTC

•	Low compression

•	Intake air leaks

•	Contaminated fuel

•	Weak ignition spark

Knocking

1)	Check the fuel pressure.

2)	Inspect the engine coolant.

3)	Inspect the radiator and the electric cooling fan.

4)	Check the spark plugs.

•

DTC

•	Contaminated fuel

Poor fuel economy

1)	Check customer's driving habitsIs · A/C on full time or the defroster mode on? · Are tires at correct pressure? · Is excessively heavy load being carried? · Is acceleration too much, too often?

2)	Check the fuel pressure.

3)	Check the injector.

4)	Test the exhaust system for a possible restriction

5)	Check the ECT sensor and circuit

•

DTC

•	Low compression

•	Intake air leaks

•	Contaminated fuel

•	Weak ignition spark

Hard to refuel
(Overflow during refueling)

1)	Inspect the fuel filler hose/pipe · Pinched, kinked or blocked? · Filler hose is torn

2)	Inspect the fuel tank vapor vent hose between the EVAP. canister and air filter

3)	Check the EVAP. canister

•	Malfunctioning gas station filling nozzle (If this problem occurs at a specific gas station during refueling)

Engine Control System

Fuel Delivery System

CVVT (Continuous Variable Valve Timing) System

Description and operation Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM con ...

Engine Control System

Description and operation Description If the Gasoline Engine Control system components (sensors, ECM, injector, etc.) fail, interruption to the fuel supply or failure to supply the pro ...

Other information:

Kia Optima DL3 2019-2024 Owner's Manual: Closing the sunroof

To close the sunroof glass with the sunshade Push the sunroof control lever forward to the 2nd detent position. The sunroof glass and sunshade will close automatically. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily. To close the sunroof glass on ...

Kia Optima DL3 2019-2024 Service and Repair Manual: Suspension System

Service data Service Data Front Suspension Item Specification Suspension type Macpherson Strut Shock absorber type Gas Rear Suspension Item Specification ...
